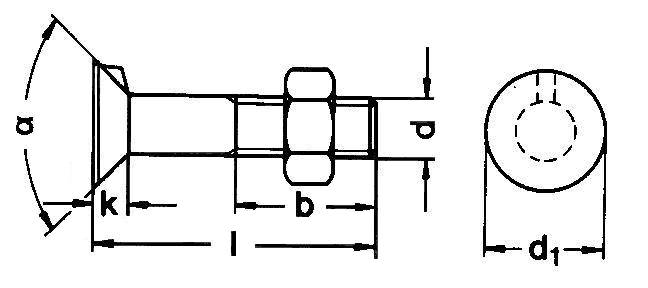

DIN 604
*All measurements in millimeters (mm)*
d
d
1
k
a
b
M8
16
5
90?/b>
22
M10
19
5.5
90?/b>
26
M12
24
7
90?/b>
30
M16
32
9
90?/b>
38
M20
32
11.5
60?/b>
46
M24
38.8
13
60?/b>
54
All information is strictly informative
